- stroke 4,5mm
- thrust 110N ( NC version ) 200N ( NA version )
- linear motion
- 2W consumption
- ferrule connection M30x1,5mm nickel-plated
- protection degree IP54
- casing material: self-extinguishing V0
- auxiliary contact : Max 700 mA - 250 V ~ (a. c.)
- double insulation construction
- mechanical position indicator
- model utility-Patent inherent the union between base and cover.

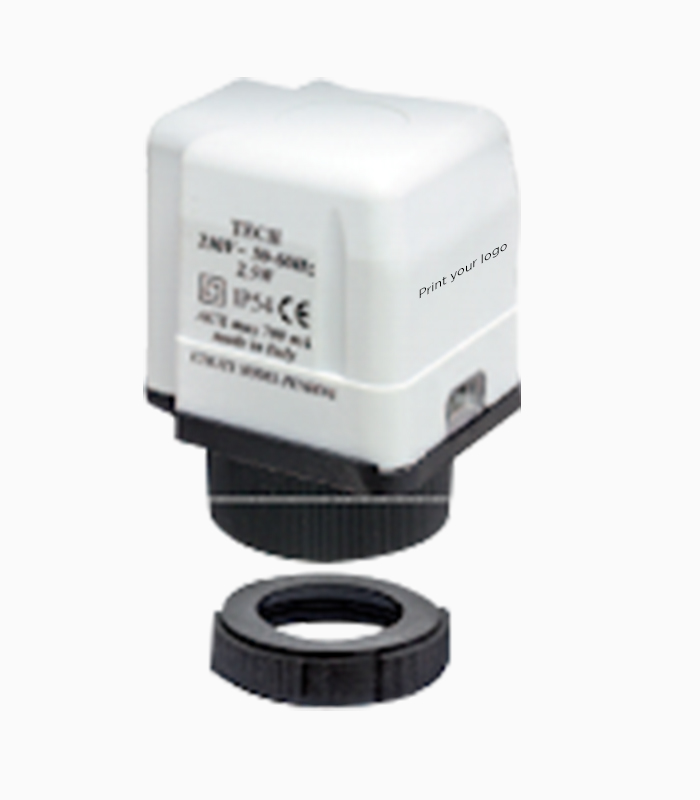

Electrothermic actuator with bayonet
Electrothermic actuators compact on/off action electrothermic actuator compatible with thermostatable radiator valves, fan-coil valves and manifolds.
The available variants are:
- Fluid passage version TEAP (NA)
- Stream interception version TECH (NC)
- For both variants you can choose the basic version or the AUX version.
- The basic version includes 2 wires
- The AUX version includes 4 wires with micro
- The power supply voltage is 24V,230V,110V
Main features :
Technical data:
| Code | description | protection | packaging |
| TECH2230P | electrothermal actuator NC 2 wires 230V | ip54 | 50 |
| TECHAUX230P | electrothermal actuator NC 4 wires 230V | ip54 | 50 |
| TECH224P | electrothermal actuator NC 2 wires 24V | ip54 | 50 |
| TECHAUX24P | electrothermal actuator NA 2 wires 230V | ip54 | 50 |
| TEAPAUX230P | electrothermal actuator NA 4 wires 230V | ip54 | 50 |
| TEAP224P | electrothermal actuator NA 2 wires 24V | ip54 | 50 |
| TEAPAUX24P | electrothermal actuator NA 4 wires 24V | ip54 | 50 |
Related products
Electrothermic nickel plated actuator
Compact electrothermal actuator, with nickel-plated ring nut, on/off action compatible with thermostatable radiator valves, fan-coil valves and collectors.
Available variants:
- Fluid passage version TEAP (NA)
- TECH flow interception version (NC)
- For both variants you can choose the basic version or the AUX version.
- The basic version includes 2 wires
- The AUX version includes 4 wires with micro
- The power supply voltage is 24V,230V, (on request 110V)
Modulating electrothermic actuator 0-10V
Special electrothermic actuator
Electrothermic actuators compact on/off action electrothermic actuator compatible with thermostatable radiator valves, fan-coil valves and manifolds.
Available variants:
- CABLE LENGTH 2 MT
- CABLE LENGTH 3 MT
- CABLE LENGTH 0.60 MT WITH INSULATED FASTON
- CABLE LENGTH 1 MT WITH INSULATED FASTON
- VOLTAGE 110V
According to standards: CEI EN 60529:1997 + A1:2000
CEI EN 60204-1:2006
